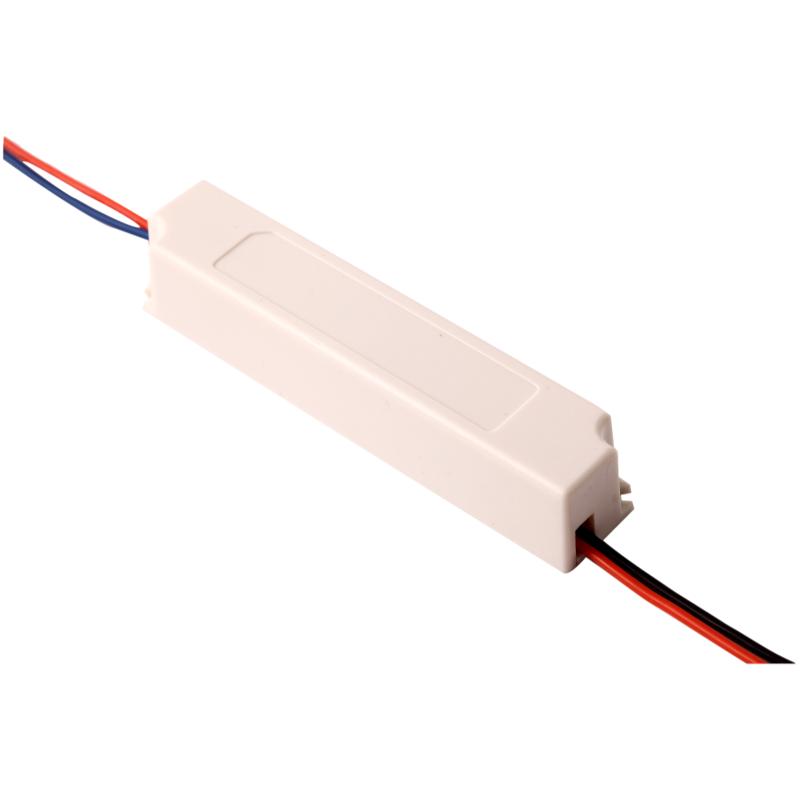

6W-150W Plastic case Waterproof Power Supply

Category

6W-150W Plastic case Waterproof Power Supply

Additional information

Material

Plastic case
Input

100–240Vac
Output

12V
Warranty

2 Years
Power

6W, 15W, 20W, 24W, 36W, 40W, 60W, 75W, 100W, 150W
Ask for a QUOTE

Product Details:

Two years warranty
CE/RoHS certification
100% full load burn-in test
Wide range of input voltage
output voltage accurate and stable
Protection: Output over-voltage, over-current, and short-circuit
Low output ripple and noise
Suitable for LED lighting
IP67 design for indoor or outdoor installations
Product Features
Input specification Input voltage: 100-240VAC
Input frequency: 50/60Hz
Input surge: Cold start: /230VAC
Output specification The Output voltage can be adjusted: ±10%
Start-up time: ≦1S(input 230V，Io=100%)
Keep time: ≧20mS (input 230V，Io=100%)
Voltage regulation: (Full load) ≦0.5%
Protection function Overload protection: 105% – 150% rated power, automatic recovery
Over-voltage protection: 105% – 150% of the rated voltage
Insulation intensity Input-output: 1500VAC/1min
Input—ground: 1500VAC/1min
Input—ground: 500VAC/1min
Safety standards EN61347-2-13:2006  EN61347-1:2008+A1:2011+A2:2013
EMC standards EN55015:2006+A1:2007+A2:2009,EN 61547:2009,EN61000-3-2:2006+A1:2009+A2:2009,EN61000-3-3:2013
Environmental Working temperature – 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage temperature – 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
Working humidity 20-90%RH no condensing (Waterproof)
Height above sea level ≦2000M
Cooling method Natural cooling air convection
Product Type Table
Product model Input (V) Output specification Dimension(mm) Ripple, Noise Efficiency

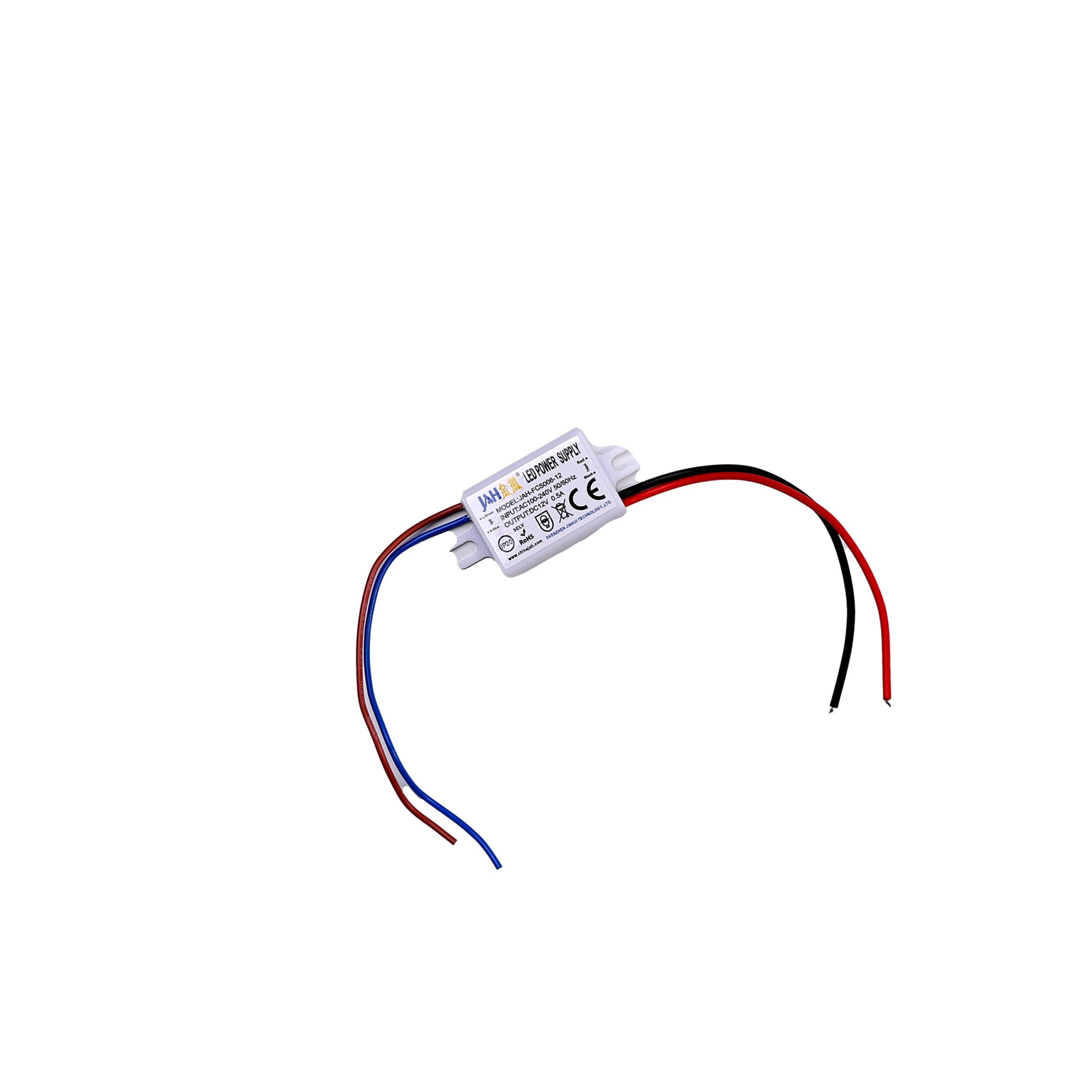

WPP-006 110V-240V 12V0.5A 55*28*23 100mV 85%

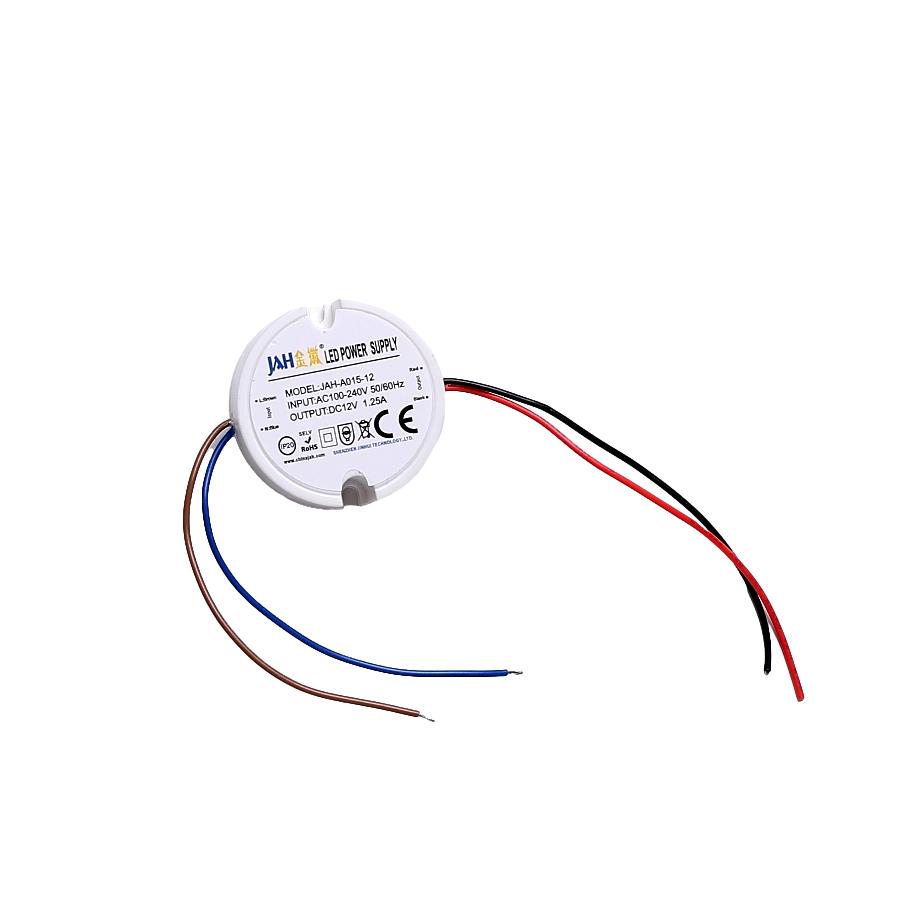

WPP-015 110V-240V 12V1.25A 49*49*23 100mV 85%
WPP-020 110V-240V 12V1.67A 120*34.5*26 100mV 85%
WPP-025 110V-240V 12V2.08A 120*34.5*26 100mV 85%
WPP-035 110V-240V 12V2.91A 140*42*30 100mV 85%
WPP-040 110V-240V 12V3.34A 140*42*30 100mV 85%
WPP-060 110V-240V 12V5A 166*42*33.5 100mV 85%
WPP-075 110V-240V 12V6.25A 173*44*32.5 100mV 85%

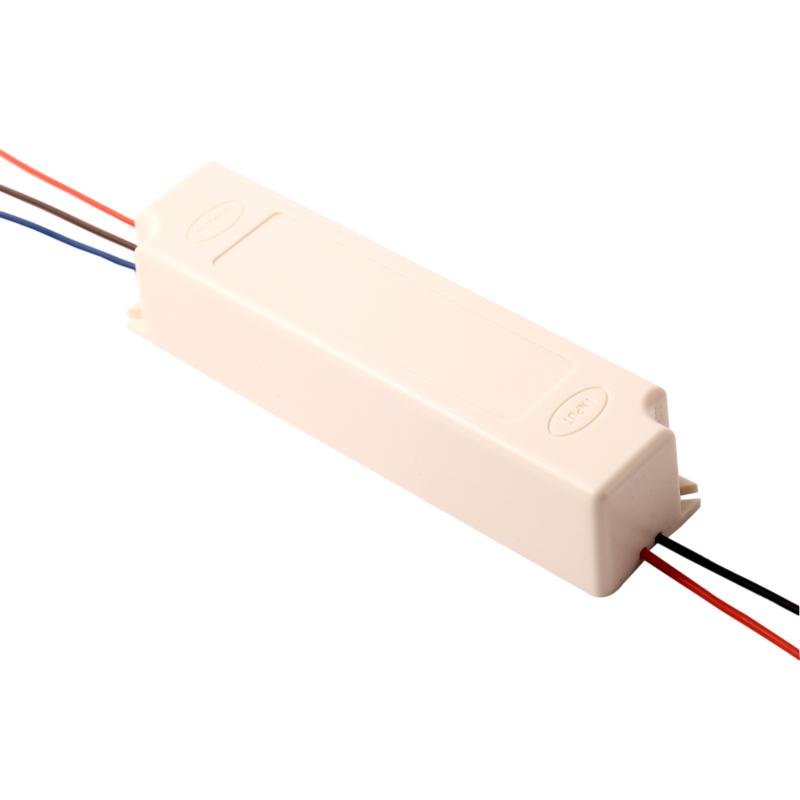

WPP-100 110V-240V 12V8.5A 190*60*38 100mV 85%
WPP-150 110V-240V 12V12.5A 190*60*38 100mV 85%
